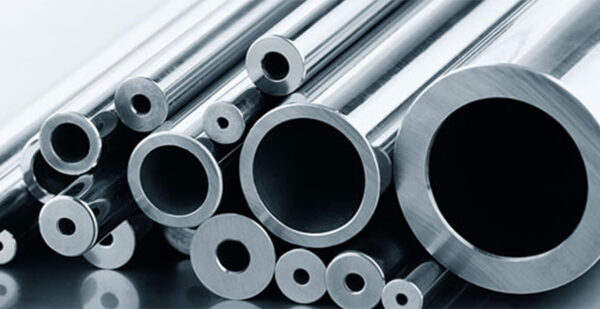

Steel Pipe ASTM A 335/A 335M-03

Steel Pipe ASTM A 335 A 335M 03
  • Material: 304, 304L, 310, 321, 316, 316L, 403 L
  • Standard: Pipes / Tubes ASTM
  • Pressure: SCH5, SCH10, SCH20, SCH30, SCH40, SCH60, SCH80, SCH100, SCH120, SCH160, XXS
GET THE BEST PRICE
Chat Now

Leave us a message​

Description

ASTM A 335/A 335M is the American Society for Testing and Materials (ASTM) standard for seamless alloy steel pipe for use in high-temperature applications. Pipes conforming to this standard are commonly used in steam, oil and gas, and chemical systems.

Applications

  • Used in boiler systems, high pressure boilers
  • Applications in the oil and gas industry, liquefied gas
  • Used in chemical industry and power plants
  • Used in high temperature piping systems

Standards

  • ASTM A 335/A 335M-03 specifies requirements for chemical composition, mechanical properties, and nondestructive testing to ensure the quality of steel pipe.
  • Standards include:
    • Hardness test
    • Tensile test
    • Elongation test
    • Hydraulic testing
    • Non-destructive testing (NDT)

The table below shows the corresponding thickness and weight for different SCH grades:

Nominal Pipe Size (inch) OD (mm) SCH 10 WT (mm) SCH 10 kg/m SCH 20 WT (mm) SCH 20 kg/m SCH 40 WT (mm) SCH 40 kg/m SCH 80 WT (mm) SCH 80 kg/m SCH 160 WT (mm) SCH 160 kg/m
1/8 10.29 1.24 0.28 1.73 0.39 1.73 0.39 2.41 0.53 3.33 0.69
1/4 13.72 1.65 0.46 2.24 0.61 2.24 0.61 3.02 0.79 4.55 1.08
3/8 17.15 1.65 0.58 2.31 0.78 2.31 0.78 3.20 1.06 4.85 1.43
1/2 21.34 2.11 0.91 2.77 1.13 2.77 1.13 3.73 1.51 6.02 2.24
3/4 26.67 2.11 1.15 2.87 1.54 2.87 1.54 3.91 2.10 6.55 3.09
1 33.40 2.77 1.70 3.38 2.10 3.38 2.10 4.55 2.71 8.84 4.95
1 1/4 42.16 2.77 2.18 3.56 2.78 3.56 2.78 4.85 3.48 9.70 6.45
1 1/2 48.26 2.77 2.52 3.68 3.32 3.68 3.32 5.08 4.07 10.15 8.36
2 60.33 2.77 3.23 3.91 4.51 3.91 4.51 5.54 5.44 11.07 11.55
2 1/2 73.03 3.05 4.05 5.16 7.14 5.16 7.14 7.01 9.50 14.02 18.33
3 88.90 3.05 5.07 5.49 9.54 5.49 9.54 7.62 12.47 15.24 23.27
3 1/2 101.60 3.05 5.79 5.74 11.52 5.74 11.52 8.08 15.08 15.24 29.00
4 114.30 3.05 6.50 6.02 13.38 6.02 13.38 8.56 17.73 16.65 37.38
5 141.30 3.40 8.66 6.55 17.31 6.55 17.31 9.53 23.35 18.26 50.88
6 168.28 3.40 10.38 7.11 22.05 7.11 22.05 10.97 32.02 20.24 67.53
8 219.08 3.76 15.26 8.18 35.57 8.18 35.57 12.70 53.47 23.01 115.90
10 273.05 4.19 21.65 9.27 54.74 9.27 54.74 15.09 81.55 28.58 193.41
12 323.85 4.57 27.64 9.53 70.88 10.31 77.32 17.48 115.31 33.32 285.40
14 355.60 4.78 31.40 11.13 93.36 11.13 93.36 19.05 152.16 35.71 374.65
16 406.40 4.78 36.22 12.70 124.70 12.70 124.70 21.44 195.27 40.49 499.61
18 457.20 4.78 41.08 14.27 160.23 14.27 160.23 23.83 247.88 45.24 648.48
20 508.00 5.54 51.30 15.09 199.50 15.09 199.50 26.19 308.57 50.01 819.28
22 558.80 5.54 56.52 16.13 245.21 16.13 245.21 28.58 378.13 54.76 1017.22
24 609.60 6.35 70.64 17.48 301.16 17.48 301.16 31.75 469.23 60.33 1252.79
26 660.40 7.92 97.91 18.87 366.42 18.87 366.42 35.00 580.85 65.00 1507.97

Pressure

  • Working pressure of ASTM A 335/A 335M-03 steel pipes depends on material type, size and wall thickness of pipe.
  • For high temperature applications, working pressure is typically determined based on ASME standards or other relevant engineering standards.

Material

  • P1: 1/2Mo
  • P2: 1/2Mo
  • P5: 5Cr-1/2Mo
  • P9: 9Cr-1Mo
  • P11: 1-1/4Cr-1/2Mo-Si
  • P12: 1Cr-1/2Mo
  • P15: 5Cr-1/2Mo
  • P22: 2-1/4Cr-1Mo
  • P91: 9Cr-1Mo-V
  • P92: 9Cr-1Mo-VW
SCH 80 kg/m
